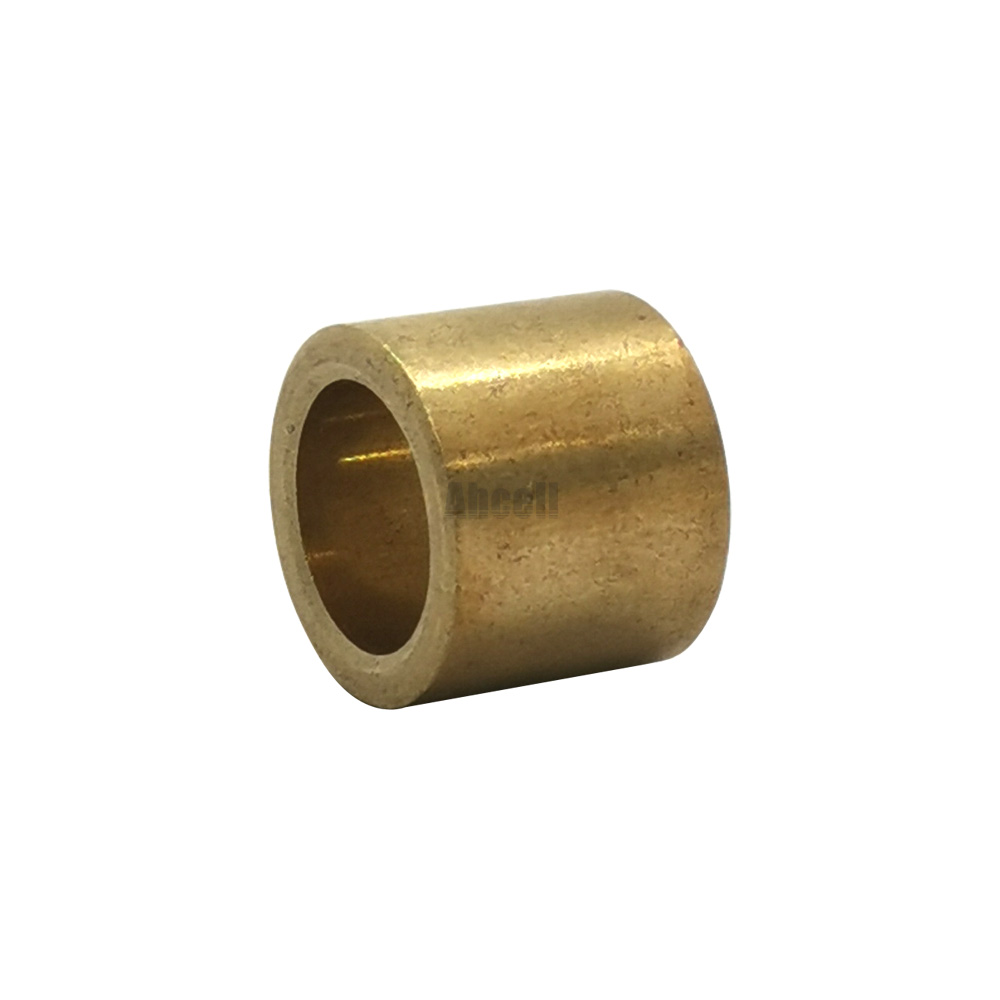

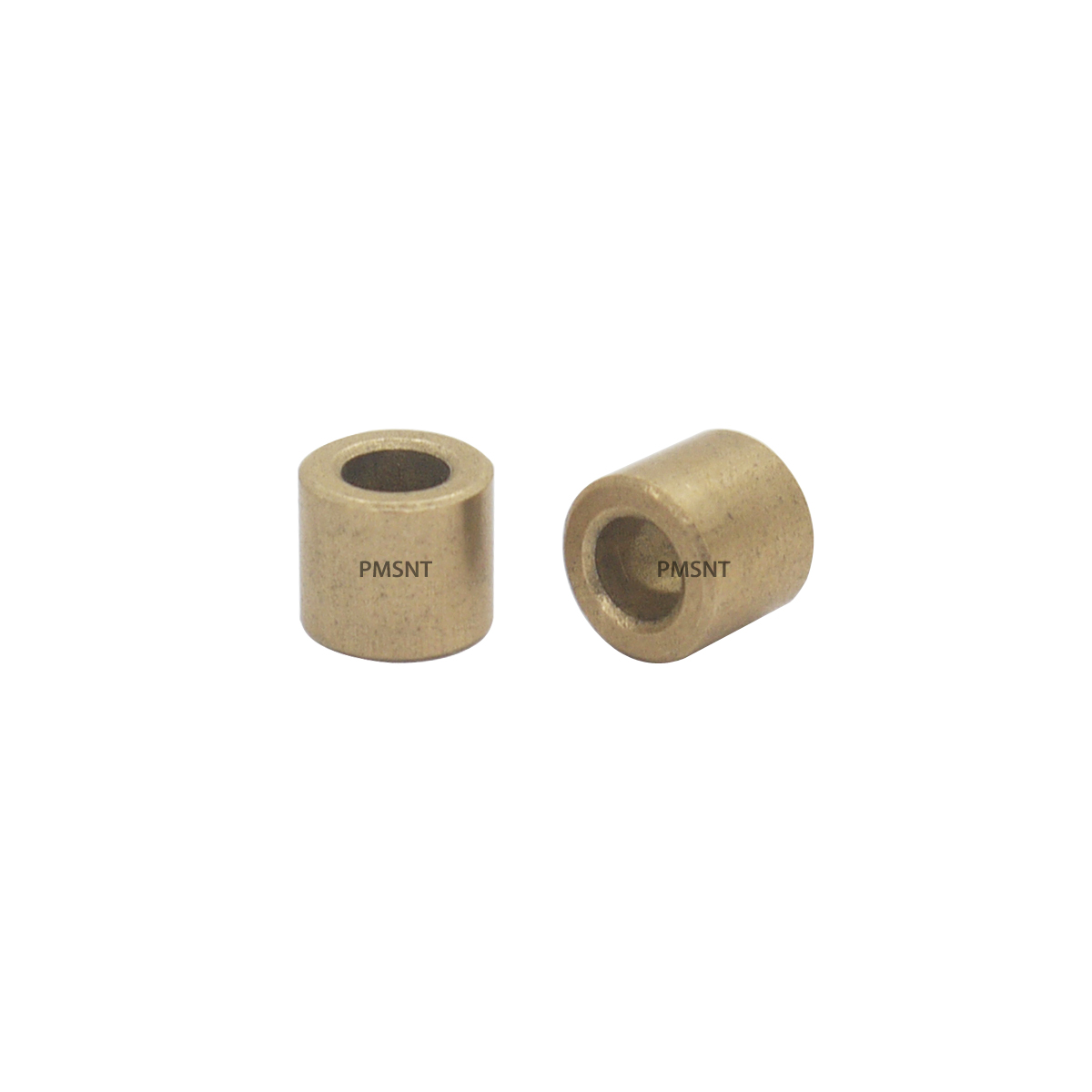

P4011Z Bronze Copper-tin Oil Sintering Slide Bush Bearing

BS 5600-5.1:1988
ISO 5755-1:1987
BS EN ISO 5755:2022
P4011Z
Product description: Constructed from bronze copper-tin material, the P4011Z oil sintering slide bush bearing complies with BS 5600-5.1:1988, ISO 5755-1:1987, and BS EN ISO 5755:2022 standards. Meeting MPIF 35 specificati
INQUIRY

P4011Z Bronze Sintered Bearing Material

Bronze (copper-tin) sintered bearing material, oil-impregnated per BS 5600-5.1:1988 / ISO 5755-1:1987. Offers excellent corrosion resistance and conformability, ideal for soft shaft applications.

Chemical Composition (BS 5600-5.1:1988)

Element	Content	Unit
C total	<0.3	%
Cu	Balance
Fe	—
Sn	9–11	%
Other elements	—	≤2

Mechanical & Physical Properties

Property	Unit	Value
Open porosity (P)	%	≥27
Radial crush strength (K)	N/mm²	≥110
Density (—)	g/cm³	6.1
Relative density (—)	%	70
Coefficient of linear expansion (μz)	10⁻⁶K⁻¹	18

The Z suffix indicates the material has been impregnated with liquid lubricant per ISO 5755. The liquid lubricant content shall be not less than 90% of the measured open porosity. Open porosity and radial crush strength are mandatory values as specified in BS 5600-5.1:1988 / ISO 5755-1:1987 / BS EN ISO 5755:2022.
