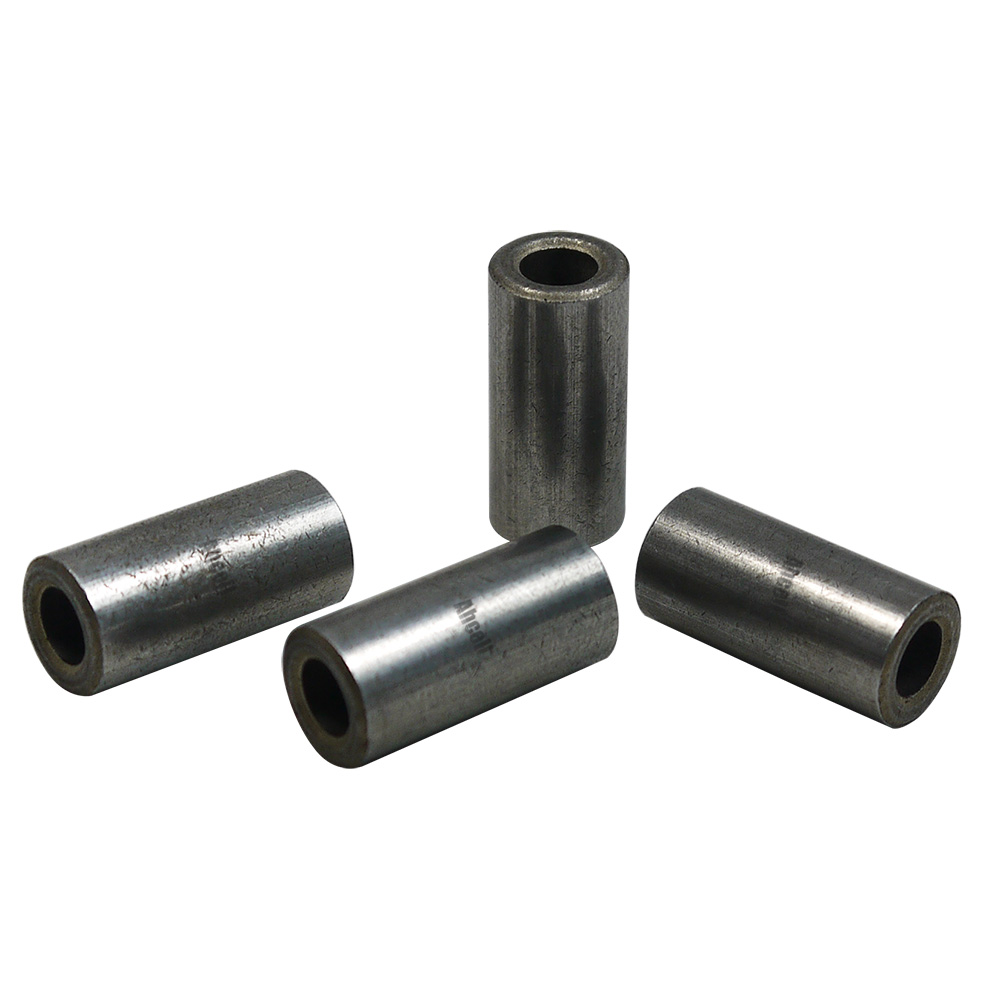

P2013Z Iron-copper Sintering Bush Bearing and Powder Metallurgy Parts

BS 5600-5.1:1988
ISO 5755-1:1987
BS EN ISO 5755:2022
P2013Z
Product description: Featuring iron-copper construction, the P2013Z sintering bush bearing and powder metallurgy parts meet BS 5600-5.1:1988, ISO 5755-1:1987, and BS EN ISO 5755:2022 standards. Compliant with SAE specific
INQUIRY

P2013Z Iron-copper Sintered Bearing Material

High-density iron-copper sintered bearing material, oil-impregnated per BS 5600-5.1:1988 / ISO 5755-1:1987. Provides maximum radial crush strength for demanding bearing applications.

Chemical Composition (BS 5600-5.1:1988)

Element	Content	Unit
C total	<0.3	%
Cu	1–4	%
Fe	Balance
Other elements	—	≤2

Mechanical & Physical Properties

Property	Unit	Value
Open porosity (P)	%	≥17
Radial crush strength (K)	N/mm²	≥250
Density (—)	g/cm³	6.2
Relative density (—)	%	80
Coefficient of linear expansion (μz)	10⁻⁶K⁻¹	12

The Z suffix indicates the material has been impregnated with liquid lubricant per ISO 5755. The liquid lubricant content shall be not less than 90% of the measured open porosity. Open porosity and radial crush strength are mandatory values as specified in BS 5600-5.1:1988 / ISO 5755-1:1987 / BS EN ISO 5755:2022.
