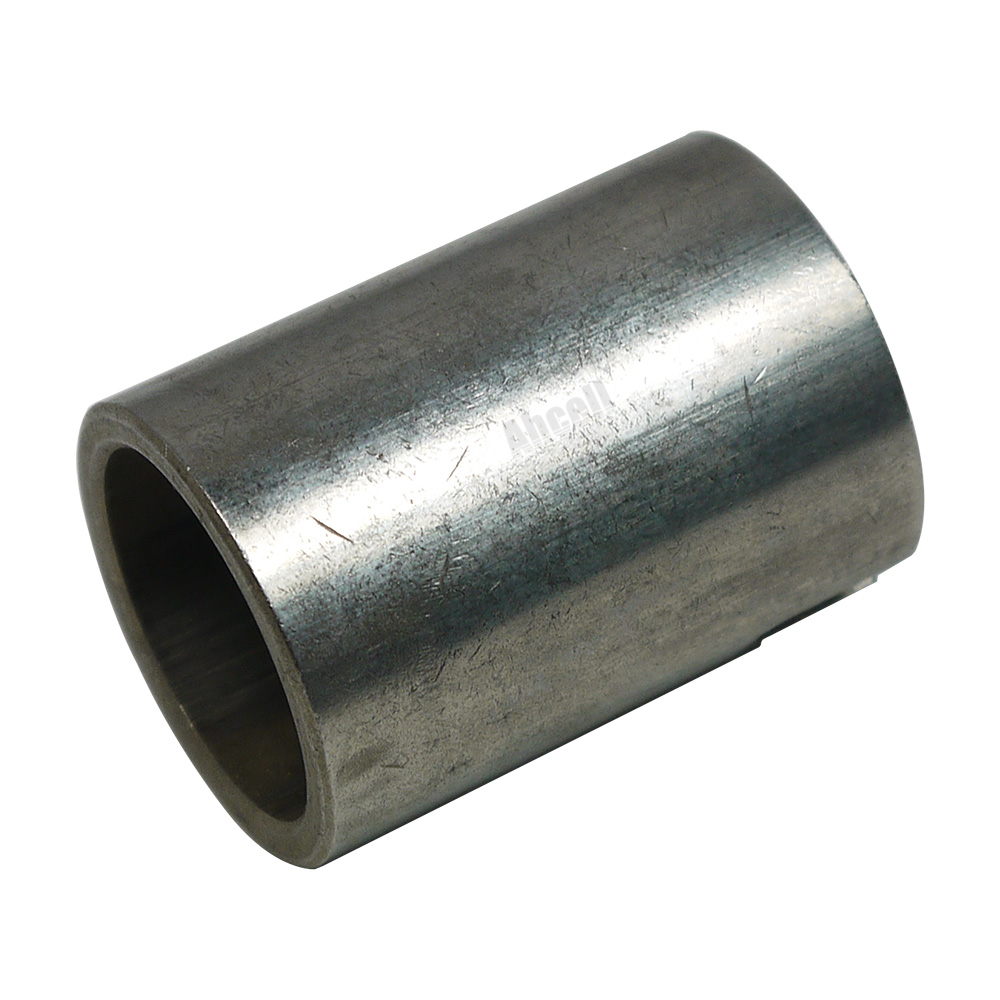

P1012Z Iron Stampling Oil Sintered Bushing Bearing

BS 5600-5.1:1988
ISO 5755-1:1987
BS EN ISO 5755:2022
P1012Z
Product description: Featuring iron stamping construction, the P1012Z oil sintered bushing bearing meets BS 5600-5.1:1988, ISO 5755-1:1987, and BS EN ISO 5755:2022 standards. This self-lubricating bearing is perfect for p
INQUIRY

P1012Z Iron Sintered Bearing Material

Medium-density iron-based sintered bearing material, oil-impregnated per BS 5600-5.1:1988 / ISO 5755-1:1987. Offers improved radial crush strength compared to P1011Z while maintaining good porosity for oil retention.

Chemical Composition (BS 5600-5.1:1988)

Element	Content	Unit
C total	<0.3	%
Fe	Balance
Other elements	—	≤2

Mechanical & Physical Properties

Property	Unit	Value
Open porosity (P)	%	≥22
Radial crush strength (K)	N/mm²	≥170
Density (—)	g/cm³	5.8
Relative density (—)	%	75
Coefficient of linear expansion (μz)	10⁻⁶K⁻¹	12

The Z suffix indicates the material has been impregnated with liquid lubricant per ISO 5755. The liquid lubricant content shall be not less than 90% of the measured open porosity. Open porosity and radial crush strength are mandatory values as specified in BS 5600-5.1:1988 / ISO 5755-1:1987 / BS EN ISO 5755:2022.
