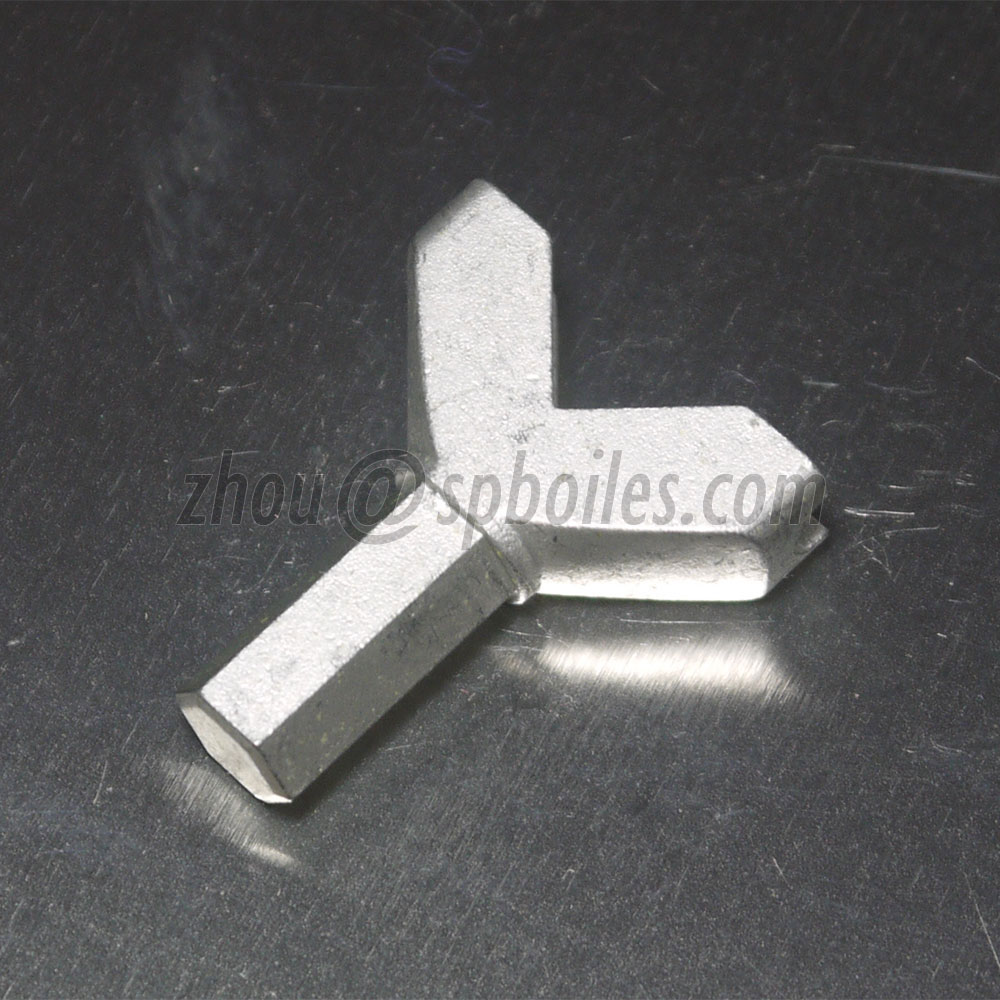

SS-316L Stainless Steel Powder Metallurgy Machinery Components

Standard: MPIF Standard 35
Code: SS-316L
Type: Stainless Steel Base
Products: Machinery Parts
Product description: SS-316L is a stainless steel base powder metallurgy machinery component set, manufactured to MPIF Standard 35. These sintered stainless steel parts offer exceptional corrosion resistance, even in mari
INQUIRY

SS-316L Stainless Steel 316 Sintered Material

SS-316L is a molybdenum-bearing austenitic stainless steel sintered material per MPIF Standard 35. Molybdenum addition provides superior pitting and crevice corrosion resistance for chemical, marine, and medical bearing applications.

Chemical Composition (MPIF Standard 35)

Element	Content
Fe	Balance
Cr	16–18%
Ni	10–14%
Mo	2–3%
C	0–0.03%
Mn	0–2%

Mechanical & Physical Properties

Property	Value
Density	6.6–6.9 g/cm³
Hardness	HRB 20–45
Tensile Strength (Ultimate)	280–390 MPa
Tensile Strength (Yield)	140–210 MPa
Impact Force	47–88 J
Transverse Rupture Strength	550 MPa

Material designation per MPIF Standard 35 — Material Standards for PM Structural Parts. Values shown represent the typical range across different density levels. HT suffix indicates heat-treated condition (quenching and tempering).
