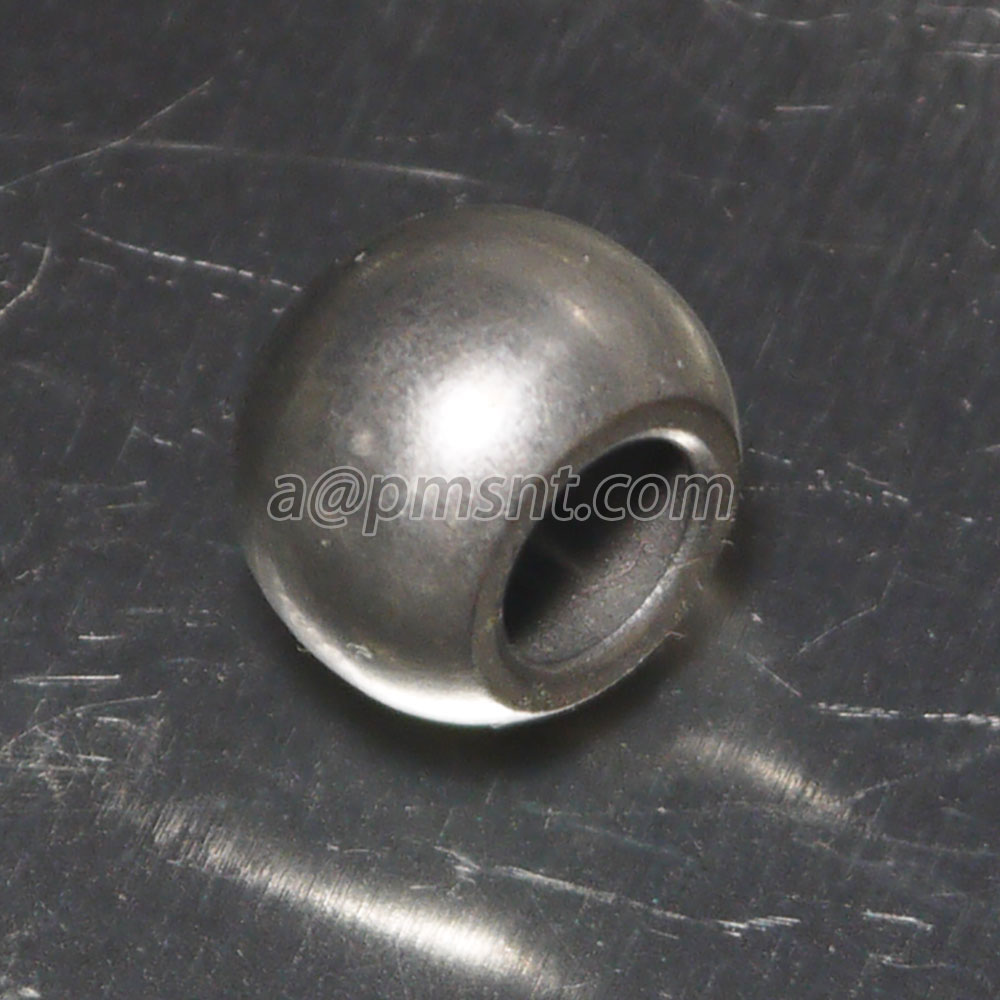

SF05-56 Iron Carbon Sintered Powder Metallurgy Bearing and Components

Standard: AMES Reference
Code: SF-62
Type: Iron-Graphite Base
Products: Self-Lubricated Bearing & Parts
Product description: The SF05-56 is an iron-graphite base sintered powder metallurgy self-lubricating bearing built to AMES Reference standards. This oil-impregnated component provides reliable performance in HVAC systems
INQUIRY

SF-62 Iron Sintered Bearing Material

SF-62 is a medium-density iron sintered bearing material per AMES reference standard. Equivalent to MPIF F-0000-K23, ISO 5755 P1013Z, and DIN SINT-B00. Balanced strength and oil retention for general iron bearing applications.

Chemical Composition (AMES Reference)

Element	Content
Fe	97.7–100%
Cu	—
Sn	—
C	<0.3%
Other	≤2.0%

Mechanical & Physical Properties

Property	Value
Density	6.0–6.4 g/cm³
Radial Crushing Strength K	≥158 MPa
Oil Content (min.)	17%

Comparable Standards: MPIF F-0000-K23 / ISO 5755 P1013Z / DIN SINT-B00. Radial crushing strength K is the mandatory value per AMES reference standard. Oil content represents minimum values at corresponding density levels.
