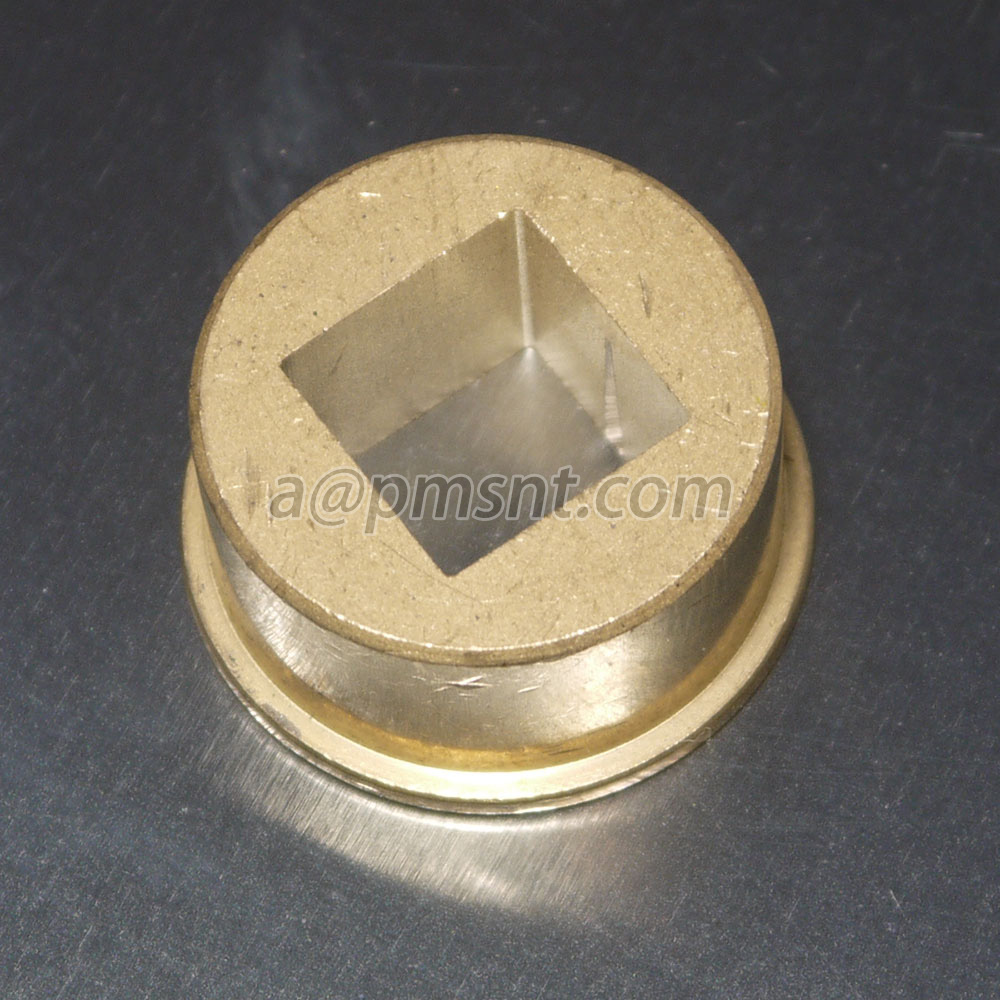

SC10-Sn10-66 Bronze Graphite Sintered Powder Metallurgy Bearing and Components

Standard: AMES Reference
Code: SC10-Sn10-66
Type: Bronze (Medium Graphite)
Products: Bearing & Parts
Product description: The SC10-Sn10-66 bronze medium graphite sintered powder metallurgy bearings and components adhere to AMES reference standards. Constructed with CuSn10 bronze and medium graphite, these oil-impregnated
INQUIRY

SC10-Sn10-66 Bronze (Medium Graphite) Sintered Bearing Material

SC10-Sn10-66 is a medium-density medium-graphite tin bronze sintered bearing material per AMES reference standard. Equivalent to MPIF CTG-1001-K23 and ISO 5755 P4023Z. Balanced strength and graphite lubrication for general bearing applications.

Chemical Composition (AMES Reference)

Element	Content
Fe	—
Cu	87.5–90.0%
Sn	9.5–10.5%
C	0.5–1.8%
Other	≤2.0%

Mechanical & Physical Properties

Property	Value
Density	6.4–6.8 g/cm³
Radial Crushing Strength K	≥159 MPa
Oil Content (min.)	17%

Comparable Standards: MPIF CTG-1001-K23 / ISO 5755 P4023Z / DIN SINT-A51. Radial crushing strength K is the mandatory value per AMES reference standard. Oil content represents minimum values at corresponding density levels.
